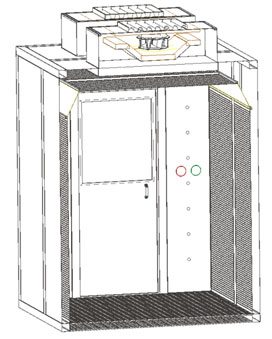

SAS. Pass-through chambers for transfer between clean areas
In the food, industrial or health sector, the passage of people or the transfer of products between the different areas, or between the areas and the outside, is mediated by the SAS clean room teams.
Airpurtec® stainless steel passage chambers are designed to guarantee safety during said transfer and are a must in the food industry but also in other sectors such as electricity, nuclear, consulates, jewelers, banks and others.
SASs must satisfy the high level of demand with which food production processes are controlled and are subject to international regulations.
Features
Built in AISI 304 stainless steel, satin finish, with PVC protection.
They incorporate an air shower system.
Indoor Led lighting
Air treatment unit built in AISI 304 stainless steel, satin finish.
Welded and polished structure with successive filtration stages.
It incorporates a high-performance turbine
with an EC motor and a built-in variator.
Stainless steel tube structure.
40x40 or 20x20 mm in AISI 304 1.5 mm depending on its
components.
Doors in AISI 304 stainless steel, satin finish with insulated sandwich protection PVC
in PIR 25 mm thickness.
Removable on one side of the unit to access the turbine and filters, with handles and panel retainers and watertight gasket.
Door interlock with electromagnetic lock and pressure seal.
Differential pressure switch for air for pre-filter
Differential
pressure
switch for air for filter
Air differential pressure sensor for turbine control.
EC flat blades turbine with built-in variator.
In accordance with EN 61800-5-1 standards;
CE
Certifications UL 1004-7 + 60730

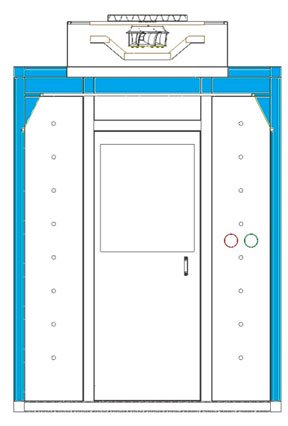

Entrance and exit gate
Doors with opening in lock mode, synchronized by traffic light.
Made of stainless steel.
With square glass window.
Emergency opening actuation by internal and external pushbutton.
Control Control
panel access to SAS, personal entrance and exit, to control room pressure.
Synchronization of personal access doors, by means of a traffic light
Filter alarm pilot.
